BX-200N-BA1

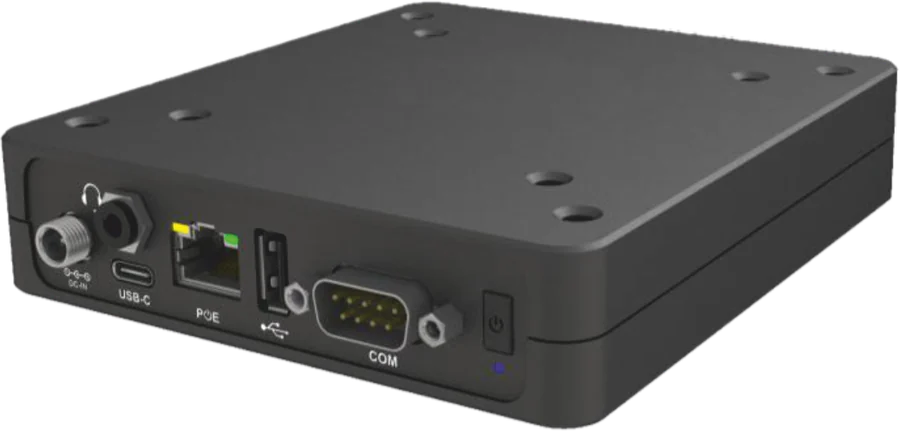

MicroTouch Signage Player
Order codeBX-200N-BA1
MicroTouch Signage Player BX-200N-BA1, specified below.
Technical specifications
| GPU | Mali-G57 MC2 |
|---|---|
| System Memory | 8GB dual channel LPDDR5X |
| Storage Device | 64GB UFS3.1 |
| WIFI/BT | WIFI 6E/BT5.2 (BLE Supported) |
| USB Port | 2 x USB 3.2 |
| LAN Port | 1 x LAN (Support 10/100/1000Mbps, 802.3at POE 25W) |
| Video Port | 1 x USB3.0 Type-C (4lane DP-alt mode), 1 x HDMI |
| COM Port | 2x COM (RS232/485) |
| External IO Ports | 1 x DB9, 1 x RJ11, 1 x Power button, 1 x Earphone (CTIA MODE) |
| Power Input | 12V DC, 60W |
| OS | Android 15 with GMS (EDLA) |
| Material | Die casting |
| Housing Color | Black |
| Dimensions (W x H x D) | 130 x 119 x 28 mm |
| Net Weight | 0.63 kg |
| Certifications | CCC, CE, FCC, SRRC, CE RED, FCC ID |
| Operating Temperature | -10°C ~ 60°C, 20% ~ 80% RH. Non-Condensing |
| Storage Temperature | -20°C ~ 70°C, 10% ~ 90% RH. Non-Condensing |
About BX-200N-BA1
BX-200N-BA1 is the order code for the MicroTouch Signage Player, from the Signage Player range by MicroTouch. MicroTouch is the product brand of AIR DigiLife Private Limited, which supplies, deploys and services it across India.
