IC-156P-BA1

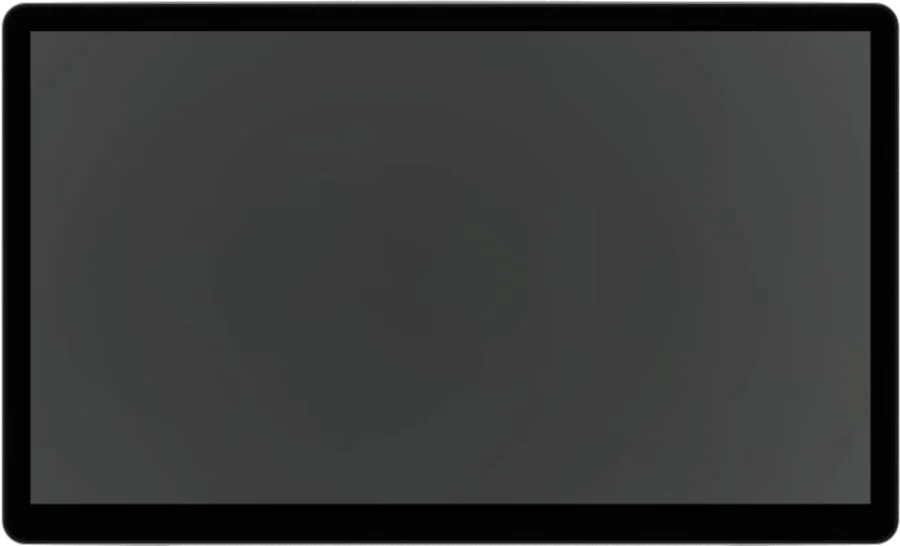

MicroTouch Touch Computer 15.6″ All-in-One PC
Order codeIC-156P-BA1
The IC-156P-BA1 is powered by Rock chip’s RK3568 platform, combining low power consumption with reliable computing performance in one integrated panel PC. With its capable CPU performance and ultra-slim design, this model is well suited for a wide range of environments. Running on Android 11 OS, the IC-156P-BA1 provides plug-and-play functionality, allowing your team to easily integrate it into new or existing applications. From POS and self-service kiosks to point-of-information systems and other customer-facing applications, this product can support various peripheral options, including camera integration, making it a flexible form-fit-function solution for different usage scenarios.
Technical specifications
| Processor | Embedded — 4 efficient cores |
|---|---|
| GPU | ARM G52 2EE |
| System Memory | 4GB LPDDR4 |
| Storage Device | 32GB eMMC |
| Wi-Fi & Bluetooth | WIFI5, BT5.0 |
| Size / Resolution | 15.6" TFT LCD / 1920 x 1080 |
| Touch Screen | Projected Capacitive Touch, 10 Points |
| Brightness (Touch Type) | 250 nits (No Touch), 405 nits (P-CAP) |
| Contrast Ratio | 1000:1 |
| View Angle | H: 170˚, V: 170˚ |
| Ball Drop | IK06 |
| NFC | – |
| Serial Port | 1 x RS232 |
| USB Port | 1 x USB 3.0 Type A, 1 x USB 3.0 Type A (OTG support) |
| LAN Port | 1 x RJ45 Giga LAN |
| Video Port | 1 x HDMI |
| Power Input | 1 x DC in 12V/5A |
| SD Slot | 1 x TF Slot |
| OS | Android 11 |
| Speaker | 2 x 2W |
| Material | Plastic, Glass, SECC Metal |
| Housing Color | Black |
| Dimensions (W x H x D) mm | 511 x 306.8 x 45.6 mm |
| Net Weight (kg) | 3.82 kg |
| Gross Weight (kg) | 5.85 kg |
| Carton (W x H x D) mm | 600 x 400 x 192 mm |
| VESA | 100 mm x 100 mm |
| IP Protection | Front Panel IP65 Compliant |
| Certifications | BIS |
| Operating Temperature | 0°C ~ 40°C, 20% ~ 80% RH. Non-Condensing |
| Storage Temperature | -20°C ~ 60°C, 10% ~ 90% RH. Non-Condensing |
About IC-156P-BA1
IC-156P-BA1 is the order code for the MicroTouch Touch Computer 15.6″ All-in-One PC, from the Ai All In One range by MicroTouch. MicroTouch is the product brand of AIR DigiLife Private Limited, which supplies, deploys and services it across India.
To buy IC-156P-BA1, ask for a price, or check availability for your project, use the quote button above or call +91 98700 61736. Pricing depends on quantity, configuration and delivery location, so a quote is prepared for each enquiry.
