OF-215P-BB1

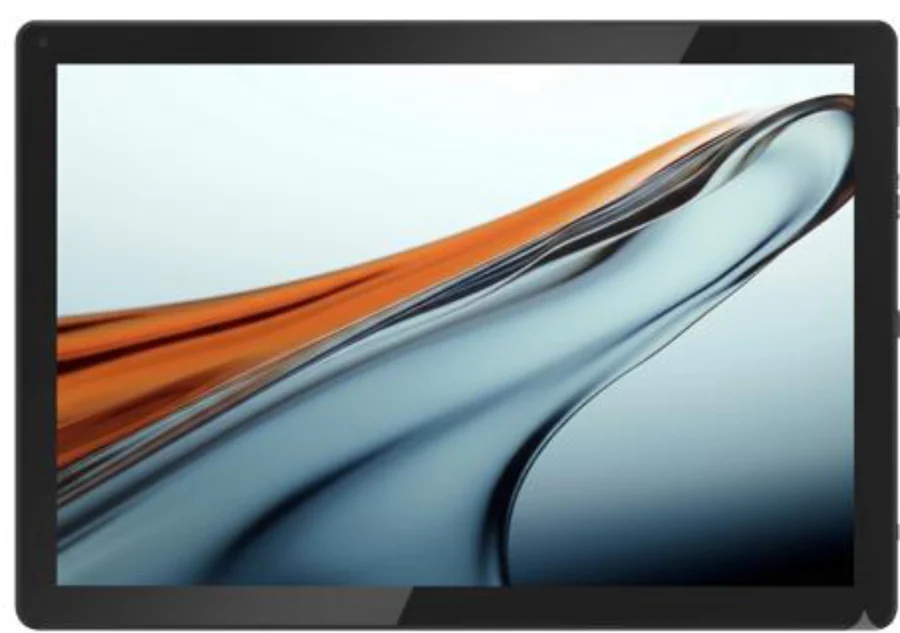

MicroTouch Open Frame 21.5″ Touch Display
Order codeOF-215P-BB1
The OF-215P-BB1 is a 21.5", newly designed, commercial-grade open frame solution. The refined aesthetics, standard gasketed bezel, and cable management feature ensures that the customer specific application remains clean, aesthetically remarkable with the ability to endure harshest of environments. A stylish thin cable management bracket and versatile design, the OF-215P-BB1 is an exceptional choice for applications for all business sectors and well suited for point-of-sales, point-of-information, point-of-service and interactive signage. The OF-215P-BB1 retains all capabilities to mold a unique solution for any customer application
Technical specifications
| Touch Screen | Projected Capacitive |
|---|---|
| Touch Points | 10 |
| Touch Screen Interface | USB-HID (Type B) |
| USB Port | 1 x USB 2.0 (Type B) for Touch Interface (USB-HID) |
| Video Port | 1 x VGA, 1 x HDMI |
| Power Input | 1 x 12V DC Jack |
| Power Supply | 60 W (12V, 5A) External Power Adaptor |
| Housing Color | Black |
| Construction | Glass, Plastic (ABS), SECC Metal |
| Dimensions (W x H x D) mm | 520.8 x 312.3x 52.9 mm |
| Net Weight (kg) | 5.6 |
| Gross Weight (kg) | 7.05 |
| Carton (W x H x D) mm | 615.0 x 405.0 x 160.0 |
| VESA | 100 x 100 / 75 x 75 mm |
| Ball Drop | IK08 |
| Certifications | CCC, BIS |
| Operating Temperature | 0°C ~40°C, 20% ~ 80% RH. Non-Condensing |
| Storage Temperature | -20°C ~ 60°C, 10% ~ 95% RH. Non-Condensing |
About OF-215P-BB1
OF-215P-BB1 is the order code for the MicroTouch Open Frame 21.5″ Touch Display, from the Touch Screen Display range by MicroTouch. MicroTouch is the product brand of AIR DigiLife Private Limited, which supplies, deploys and services it across India.
To buy OF-215P-BB1, ask for a price, or check availability for your project, use the quote button above or call +91 98700 61736. Pricing depends on quantity, configuration and delivery location, so a quote is prepared for each enquiry.
