OF-320P-A1

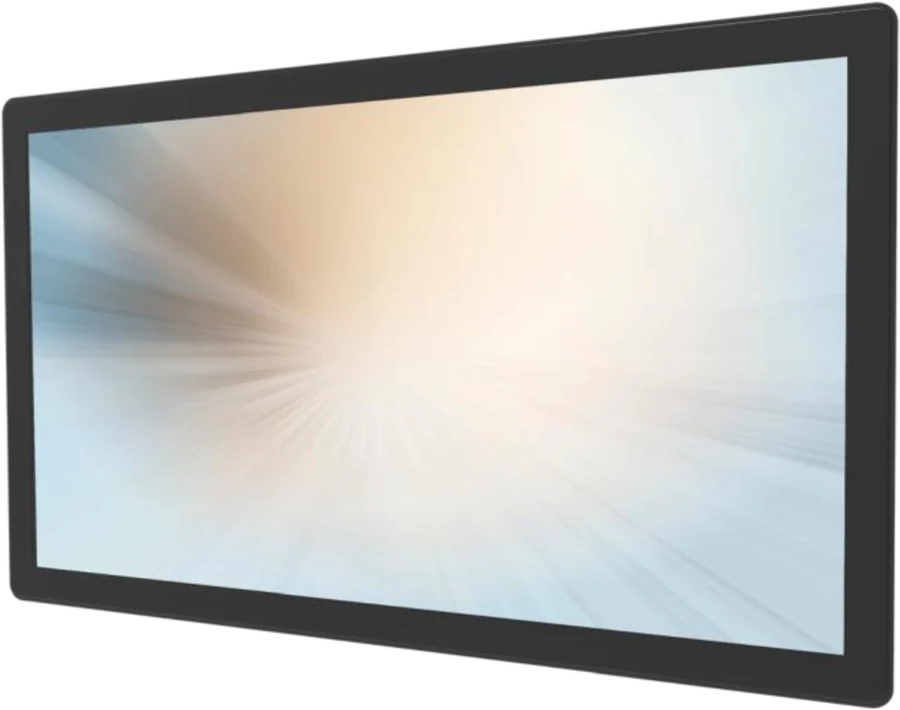

MicroTouch Touch Monitor 32″ Touch Display
Order codeOF-320P-A1
The OF-320P-A1 is a 32" Full HD (1920 x 1080) PCAP, 30-point touch solution— encouraging effective and efficient user collaboration and engagement for many environments. The ultra slim build coupled with input/output versatility, a 20 mm slim bezel design and high contrast showcases its ability to exceed all your aesthetic and performance requirements. From collaborative settings to an embedded application for a point-of-service kiosk, wayfinding, or content sharing—the OF-320P-A1 delivers everything desired in a large format touchscreen.
Technical specifications
| Touch Screen | Projected Capacitive |
|---|---|
| Touch Points | 30 |
| Touch Screen Interface | USB-HID (Type B) |
| Serial Port | – |
| USB Port | 1 x USB 2.0 (Type B) for Touch Interface (USB-HID) |
| Video Port | 1 x VGA, 1 x DP, 1 x HDMI 1.3 |
| Audio Port | – |
| Power Input | 1 x AC Power Input |
| Power Supply | AC Input 100~240VAC, 50~60Hz |
| Speaker | – |
| Housing Color | Black |
| Construction | Glass, SECC Metal |
| Compliance | Front Panel IP65 Compliant |
| Dimensions (W x H x D) mm | 739.4 x 433.85 x 61 |
| Net Weight (kg) | 10.4 |
| Gross Weight (kg) | 13.5 |
| Carton (W x H x D) mm | 890 x 155 x 630 mm |
| VESA | 200 x 200 mm |
| Ball Drop | IK08 |
| Certifications | CE, FCC, UL/CUL, CCC, RoHS |
| Operating Temperature | 0ºC ~ 40ºC, 20% ~ 80% RH. Non-Condensing |
| Storage Temperature | -20ºC ~ 60ºC, 20% ~ 90% RH. Non-Condensing |
| Remote Key | – |
About OF-320P-A1
OF-320P-A1 is the order code for the MicroTouch Touch Monitor 32″ Touch Display, from the Touch Screen Display range by MicroTouch. MicroTouch is the product brand of AIR DigiLife Private Limited, which supplies, deploys and services it across India.
To buy OF-320P-A1, ask for a price, or check availability for your project, use the quote button above or call +91 98700 61736. Pricing depends on quantity, configuration and delivery location, so a quote is prepared for each enquiry.
