PDMPAL-V

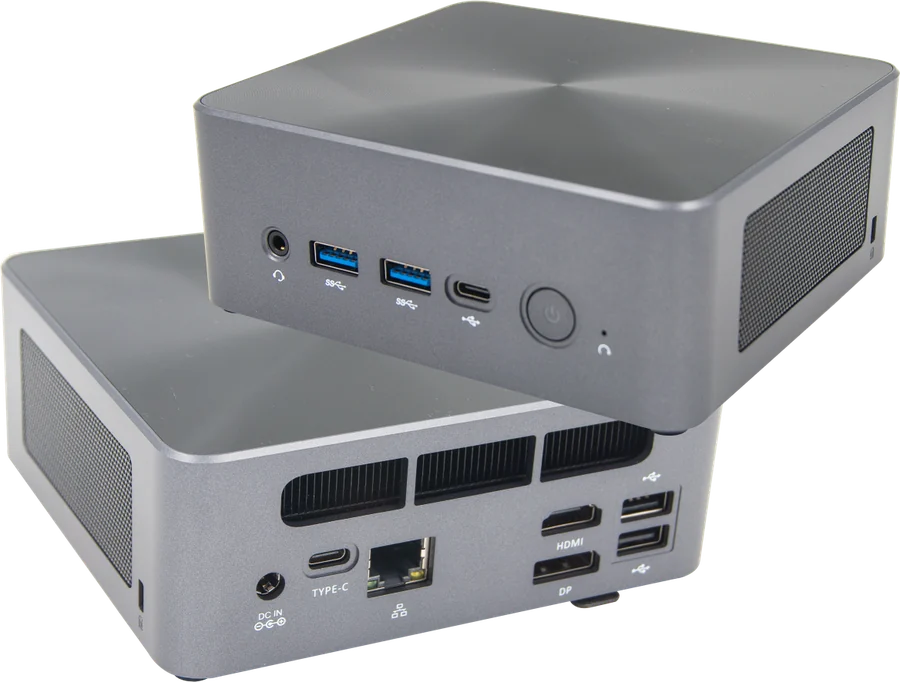

AiNUC Performance Cloud Endpoint
Order codePDMPAL-V
AiNUC Performance Cloud Endpoint PDMPAL-V, specified below.
Technical specifications
| Processor | Performance — 8 cores — performance + efficient |
|---|---|
| Graphics | Intel® UHD Graphics |
| Memory | 2 × SO-DIMM DDR4, up to 64 GB |
| Storage | 1 × M.2 2280 NVME up to 2TB, 1 x 2.5 SATA Max up to 2TB |
| Video Output | 1 × HDMI, 1 x Display Port, 1 x Type C |
| Wireless / | Wi-Fi 5 / BT4.2 (Wi-Fi 6 / BT5.0 Optional) |
| Ethernet | 1 x RJ45, 10/100/1000Mbps |
| USB | 2 × USB 3.2, 2 × USB 2.0, 1 x Type C, 1 x Type C (thunderbolt), |
| Audio | 1 × 3.5mm Combo Audio Jack; 1 × Digital Mic |
| Front I/O | 1 x Type C, 2 × USB 3.2 (Type A); 1 × Audio Jack, 1 x Power Button, 1 x Digital Mic |
| Rear I/O | 2 × USB 2.0; 1 x Type C (thunderbolt), 1 × DC-IN; 1 × RJ45, 1 x HDMI Type-A, 1 x Display Port |
| Operating System | Windows 11 IoT Enterprise LTSC/ Embedded Linux |
| Power | 12V-19V DC IN |
| Dimensions (LxWxT) | 114 x 124 x 39mm |
About PDMPAL-V
PDMPAL-V is the order code for the AiNUC Performance Cloud Endpoint, from the Ai Cloud Endpoint range by AiNUC. AiNUC is the product brand of AIR DigiLife Private Limited, which supplies, deploys and services it across India.
To buy PDMPAL-V, ask for a price, or check availability for your project, use the quote button above or call +91 98700 61736. Pricing depends on quantity, configuration and delivery location, so a quote is prepared for each enquiry.
