PDMPARAI-IX

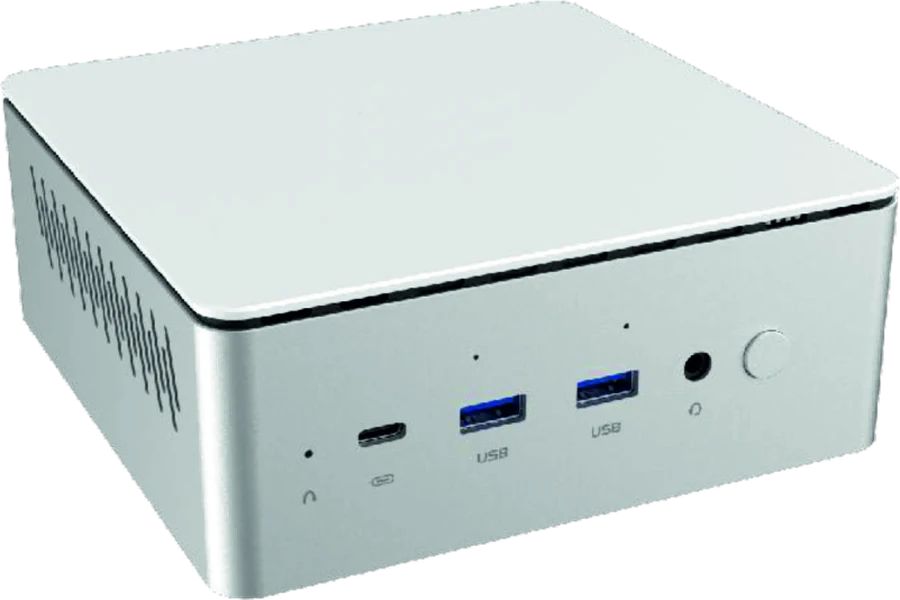

AiNUC AI Mini PC
Order codePDMPARAI-IX
The top of the Ai NUC PC line. Sixteen cores and an on-package AI engine in a 140 mm chassis, driving three 8K-capable displays from Thunderbolt 4, DisplayPort and HDMI 2.1 — for workstations, AI inference at the edge and multi-screen control rooms.
Technical specifications
| Processor | Ai Performance — 16 cores — performance, efficient and low-power, with a built-in AI engine |
|---|---|
| Graphics | Intel® Arc™ 140T GPU |
| Displays | Triple display support, 4K UHD |
| Display Interface | 1 × HDMI 2.1 (8K60Hz), 1 × DP 1.4 (8K60Hz), 1 × Thunderbolt 4, 1 × Type-C |
| Memory | 32 GB, 2 × SO-DIMM DDR5, max 64 GB |
| Storage | 512 GB, 2 × M.2 2280 Key-M, PCIe 4.0 ×4, max 2 TB |
| Ethernet | 2 × 2.5 Gbps RTL8125 (1 Gbps RTL8111K optional) |
| Wireless | M.2 2230 Wi-Fi / BT module; Wi-Fi 6E or Wi-Fi 7 optional |
| Front I/O | 2 × USB 3.2 Gen2 10Gbps, 1 × Thunderbolt 4 (40Gbps, PD 15W out, DP out 8K30Hz, PD IN 100W) |
| Rear I/O | 1 × HDMI 2.1, 1 × DP 1.4, 2 × RJ45, 1 × Type-C (20Gbps, PD 15W out, DP out 8K30Hz), 1 × USB 3.2 Gen2, 1 × DC-IN, 1 × Kensington lock |
| Audio | 1 × 3.5 mm combo audio jack |
| Security | TPM 2.0 |
| Operating System | Windows 11 / Linux |
| Power | 19V 120W DC |
| Dimensions (L×W×H) | 140.0 × 138.8 × 55.25 mm |
| Operating Temperature | -5°C ~ 45°C, 10% ~ 90% non-condensing |
| Storage Temperature | -20°C ~ 70°C, 5% ~ 95% non-condensing |
About PDMPARAI-IX
PDMPARAI-IX is the order code for the AiNUC AI Mini PC, from the Ai NUC PC range by AiNUC. AiNUC is the product brand of AIR DigiLife Private Limited, which supplies, deploys and services it across India.
To buy PDMPARAI-IX, ask for a price, or check availability for your project, use the quote button above or call +91 98700 61736. Pricing depends on quantity, configuration and delivery location, so a quote is prepared for each enquiry.
