PDOPAL-5
AiNUC Slot-in OPS Module
Order codePDOPAL-5
AiNUC Slot-in OPS Module PDOPAL-5, specified below.
Technical specifications
| Processor | Performance — 8 cores — performance + efficient |
|---|---|
| Graphics | Intel® UHD Graphics |
| Memory | Dual channel SO-DIMM DDR4 upto 3200MHz Max 32GB |
| Storage | 1 × M.2 2280 NVME up to 2TB, 1 x 2.5 SATA Max up to 2TB |
| Video Output | 1 × HDMI, 1 x Display Port, 1 x 80PIN JAE Connector (1 x HDMI 2.0, 1 x DP 1.4 ) |
| Wireless / | 1 x M.2 2230 slot for WIFI_BT Module |
| Ethernet | Lan IC 1 x Realtek 8111H Co-Lay Intel Ethernet Connec |
| USB | 2 × USB 3.2, 2 × USB 2.0, 1 x Type C, 1 x Type C (thunderbolt), |
| Audio | 1 × 3.5mm Combo Audio Jack; 1 × Digital Mic |

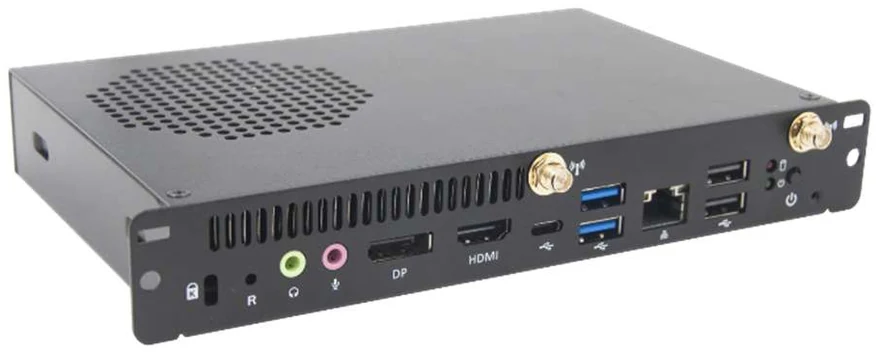

| Front I/O | 1x DP 1.4, 1xHDMI 1.4, 2x USB 3.0, 2 USB 2.0, 1 x Type-C (USB3.1), 1 x RJ45, 1 x Combo Audio |
| OPS - I/O Ports | 1 x 2.5/5.5 DC Jack In, 1 x HDMI, 1 x DP 1.4, 2 x USB 2.0, 1 x USB 3.0, 1 x TTL |
| Operating System | Windows 11 |
| Power | 12~19V DC IN, 2.5/5.5 DC Jack, JAE 80 Pin DC IN |
| Dimensions (LxWxT) | 119(L) x 180(W) x 30(H) mm |
About PDOPAL-5
PDOPAL-5 is the order code for the AiNUC Slot-in OPS Module, from the Ai OPS range by AiNUC. AiNUC is the product brand of AIR DigiLife Private Limited, which supplies, deploys and services it across India.
To buy PDOPAL-5, ask for a price, or check availability for your project, use the quote button above or call +91 98700 61736. Pricing depends on quantity, configuration and delivery location, so a quote is prepared for each enquiry.
